In 1972, two scientists were given a design brief unlike any other. Create a message that can be understood by an intelligent civilisation that has never encountered human life, has no knowledge of our languages, symbols, or culture, and may not find it for two million years.
No target audience research. No user testing. No second draft.
The result was the Pioneer 10 plaque — a 23cm gold-anodised aluminium panel bolted to the side of a spacecraft now 7.6 billion miles from Earth. It is, by any measure, the most ambitious piece of information design ever produced. And it was completed in two weeks, by two people.
The men were Carl Sagan and Frank Drake. The challenge they faced is one every designer recognises: how do you communicate something meaningful to someone you know nothing about? Their answer is worth examining carefully — not for the science, but for the thinking.
Start with what’s universal
The first problem was the most fundamental: without a shared language, how do you establish even a basic unit of measurement? Without one, nothing else on the plaque could be decoded.
Sagan and Drake’s solution was to go below language, below culture, below anything specific to Earth. They went to physics.
Hydrogen is the most abundant element in the universe. Under certain conditions, a hydrogen atom flips between two energy states — and when it does, it releases a photon. This happens the same way everywhere in the universe, always producing a photon with a wavelength of 21cm and a frequency of 1420 MHz. It is, in the most literal sense, a universal constant.

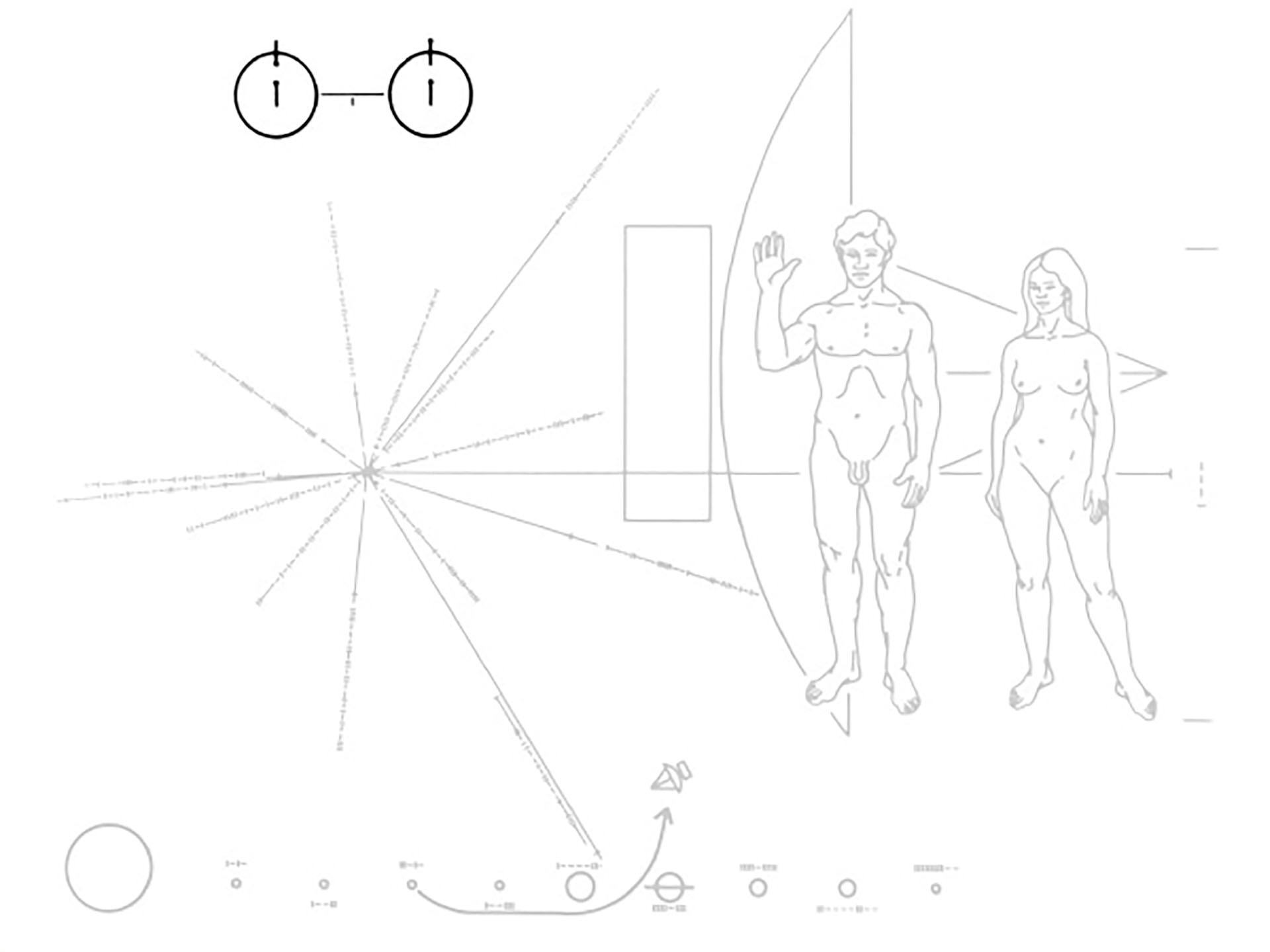

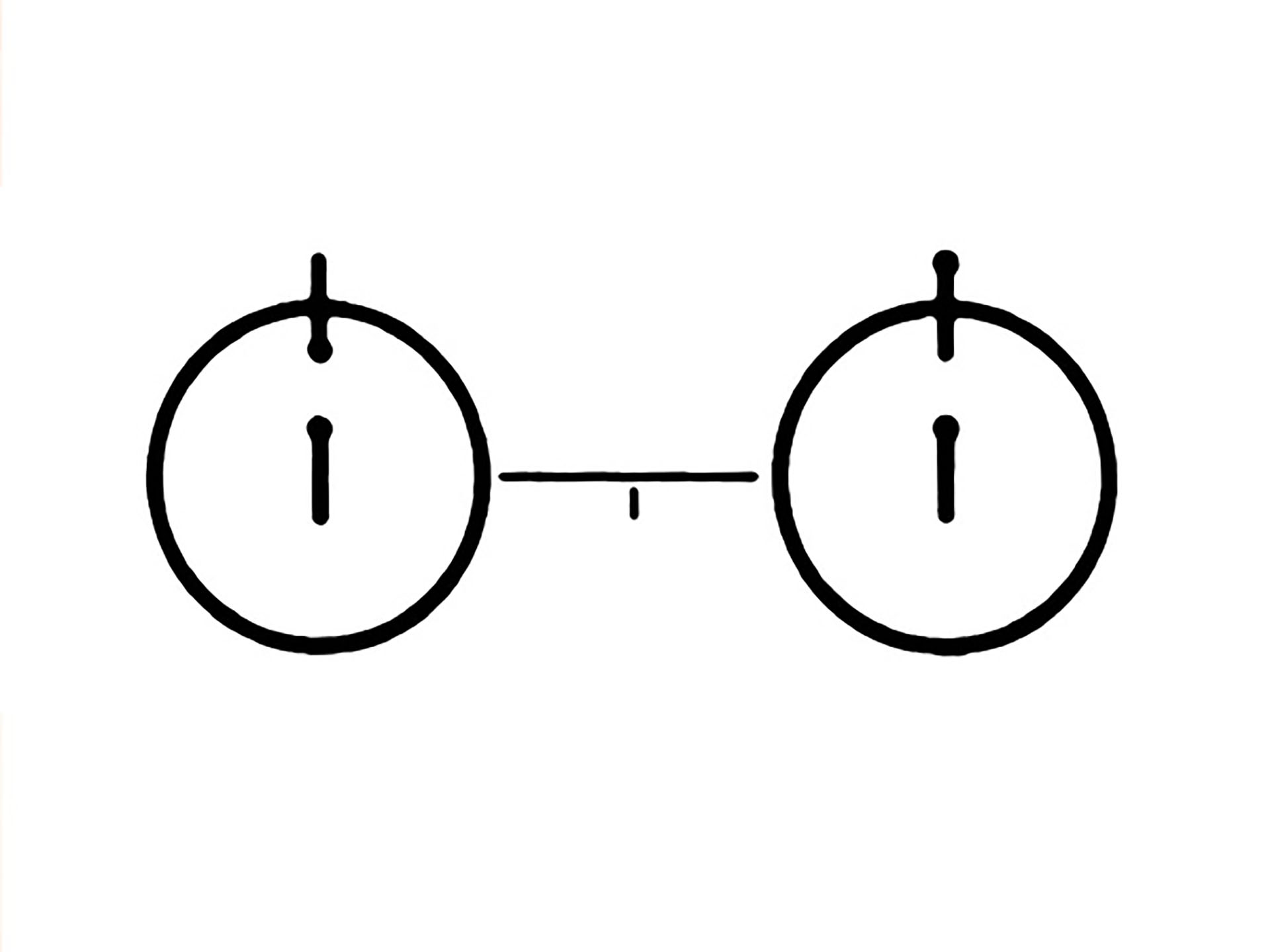

The plaque’s key — two small circles in the top left corner — represents this transition. The left circle shows a hydrogen atom in its low energy state; the right shows the high energy state. The line between them encodes in binary that this change is worth noting.

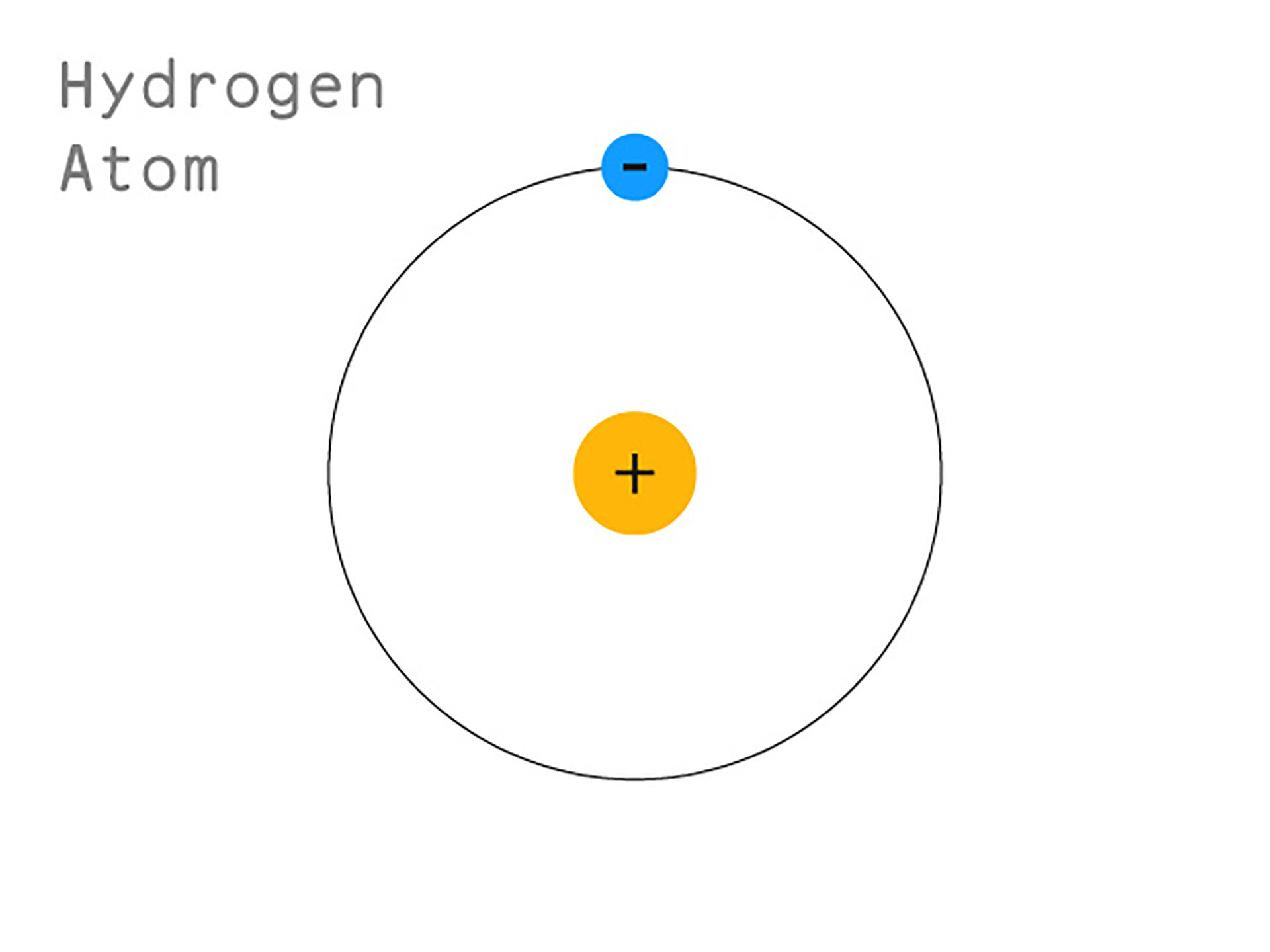

The atom itself is the starting point — a proton orbited by a single electron. When that electron flips between energy states, it emits the photon that gives us our two base units.

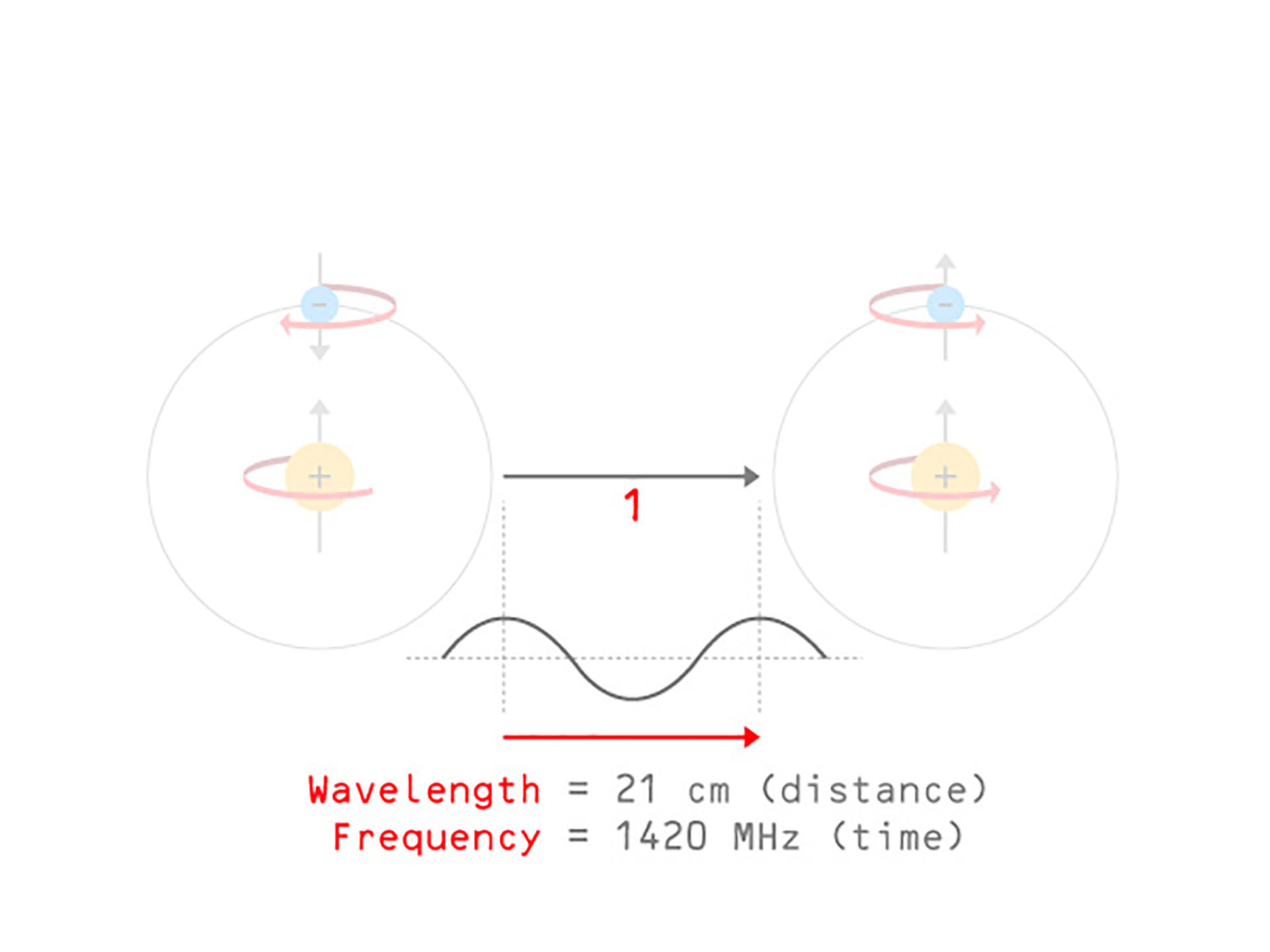

That wavelength — 21cm — becomes the unit of length. The period of the flip becomes the unit of time. From this single diagram, two base units of measurement are derived: a length (21cm) and a period of time (1/1420 MHz). Everything else on the plaque is expressed as multiples of these two numbers.
The design lesson is stark: when you have no shared context with your audience, the only place to start is the thing you can prove you both have in common. Sagan and Drake didn’t begin with what they wanted to say. They began with what they could prove would be understood.
Use landmarks, not labels
With a unit of measurement established, the plaque needed to answer a more practical question: where did this thing come from?

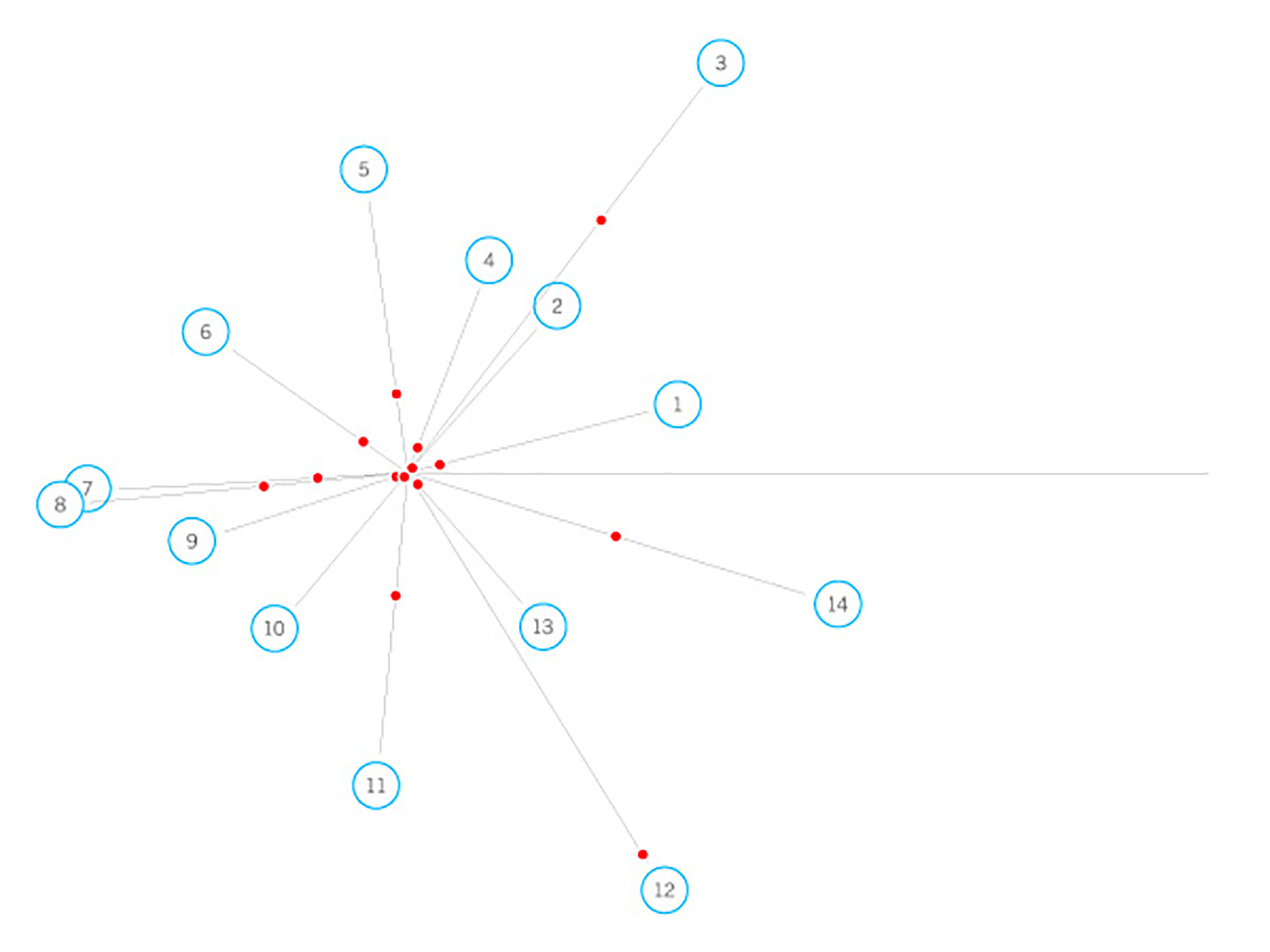

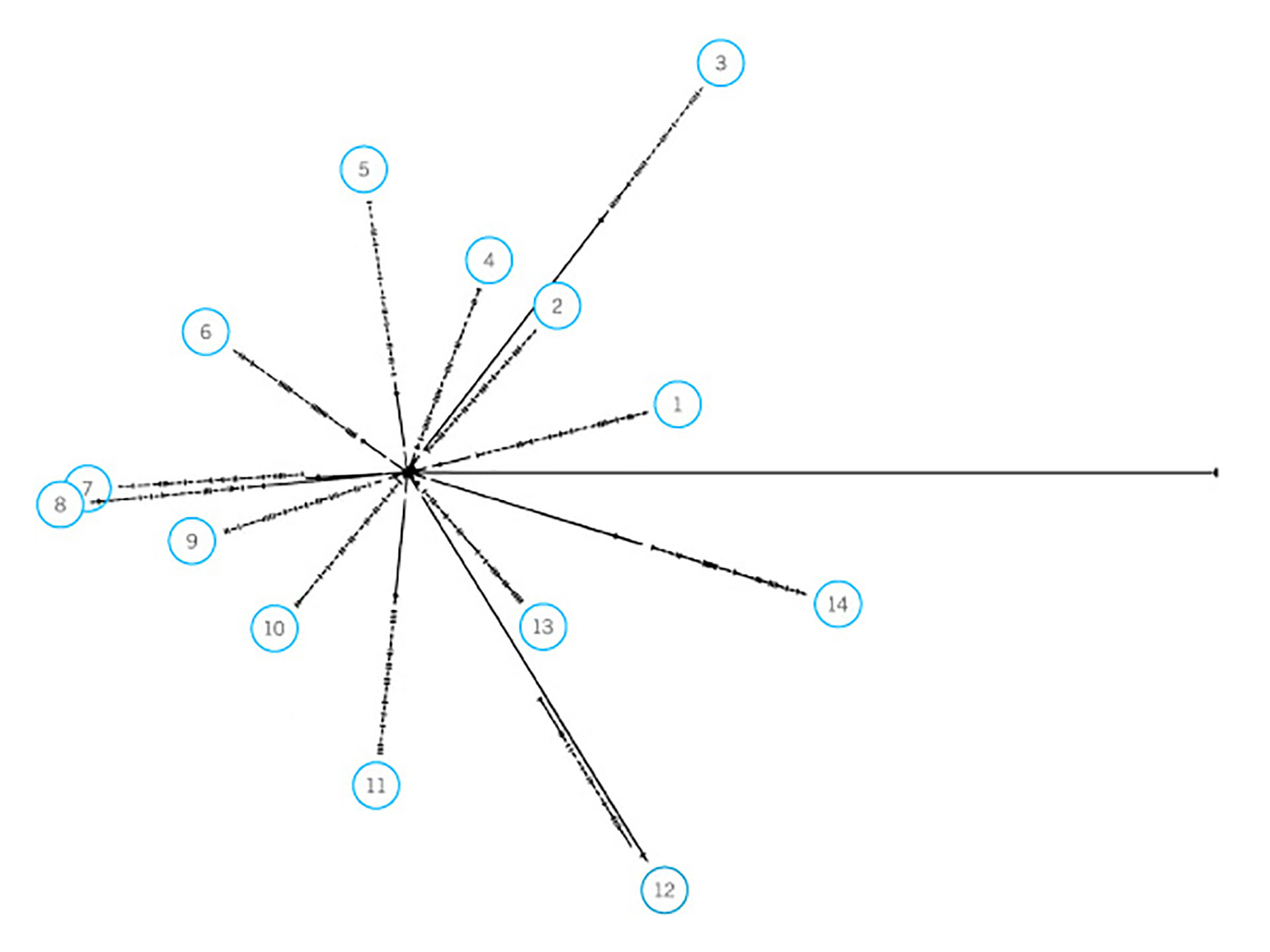

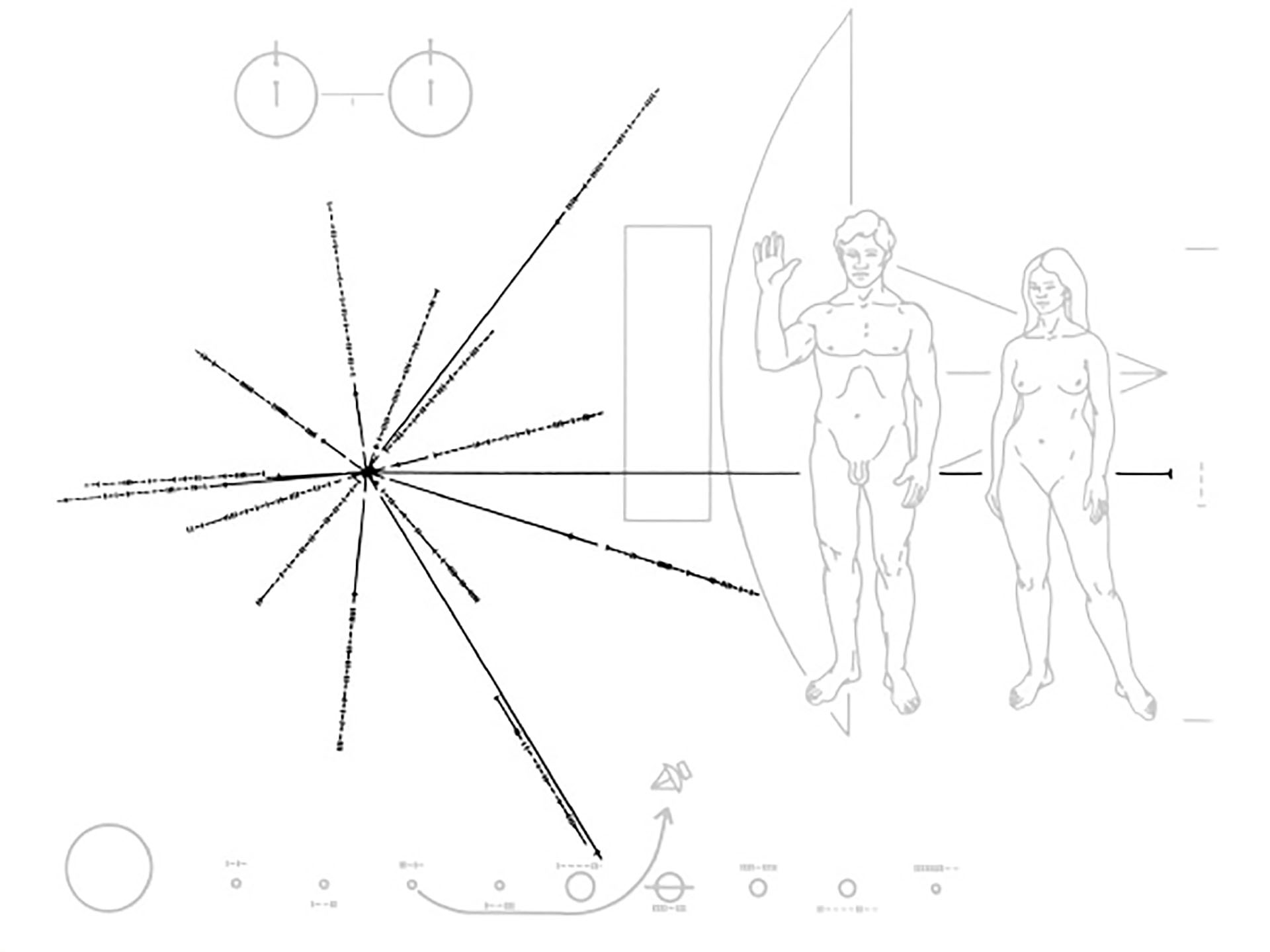

The galactic map uses 14 lines radiating from a central point — our Solar System — each representing one of the 14 strongest pulsars in our galactic neighbourhood. A 15th unmarked line shows our distance from the centre of the Milky Way.

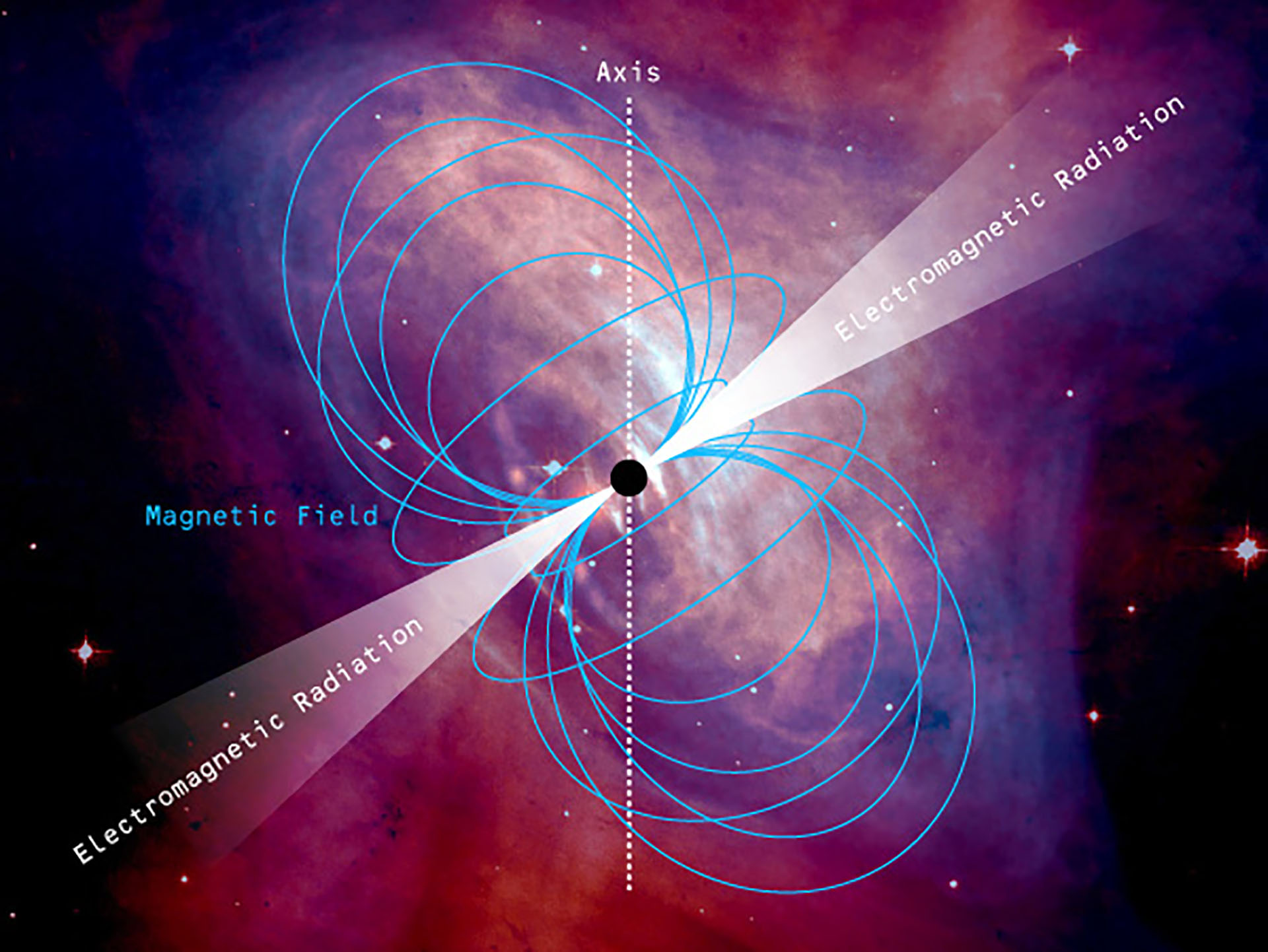

Pulsars were chosen for a specific reason: they are unmistakeable. Each one spins at a unique speed, emitting a narrow beam of electromagnetic radiation that sweeps through space like a lighthouse. Their individual beat — the interval at which that beam hits an observer — is as distinctive as a fingerprint. Any civilisation capable of detecting radio waves would know their local pulsars. Cross-reference enough of them and you can triangulate any position in the galaxy.

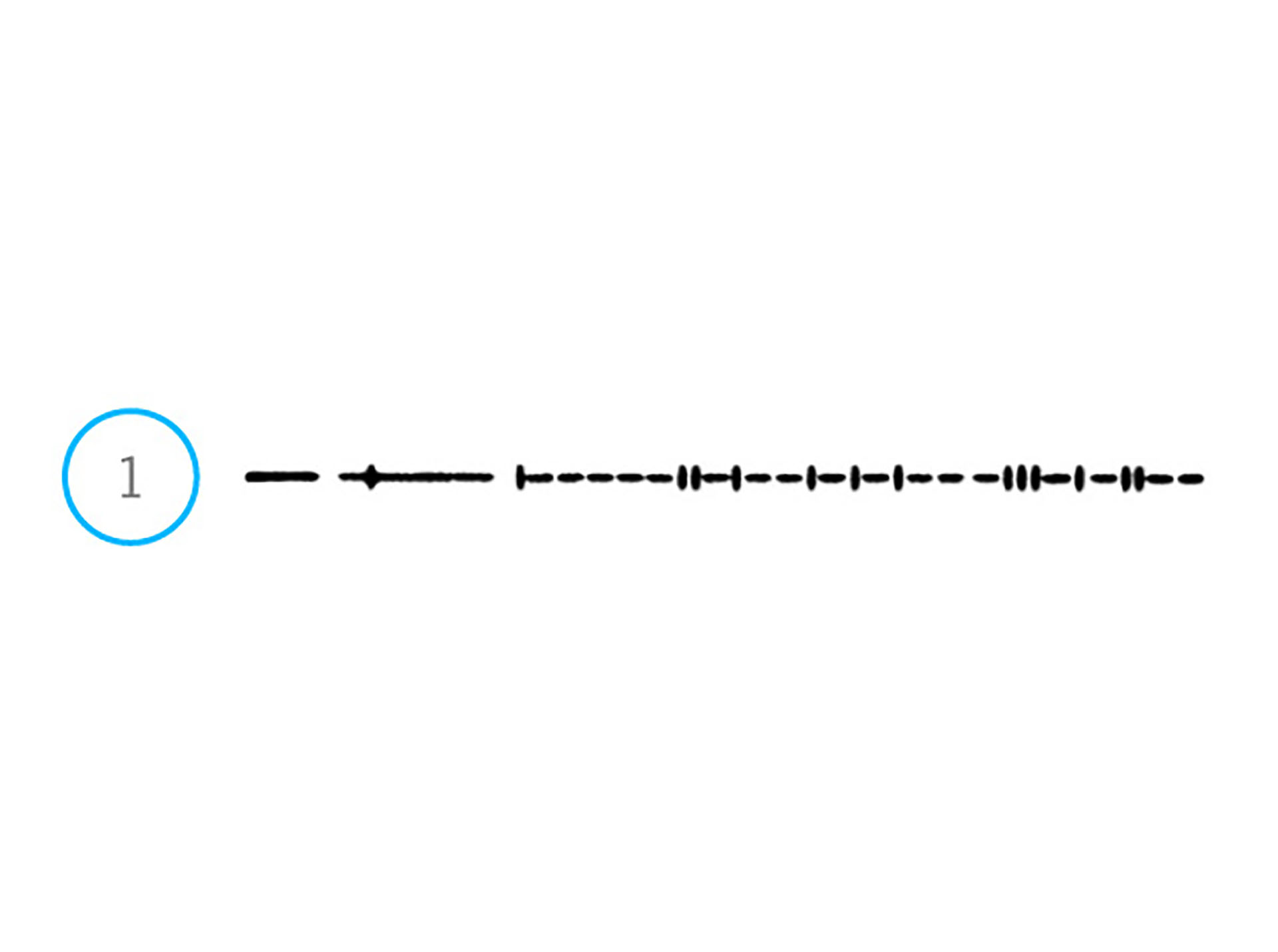

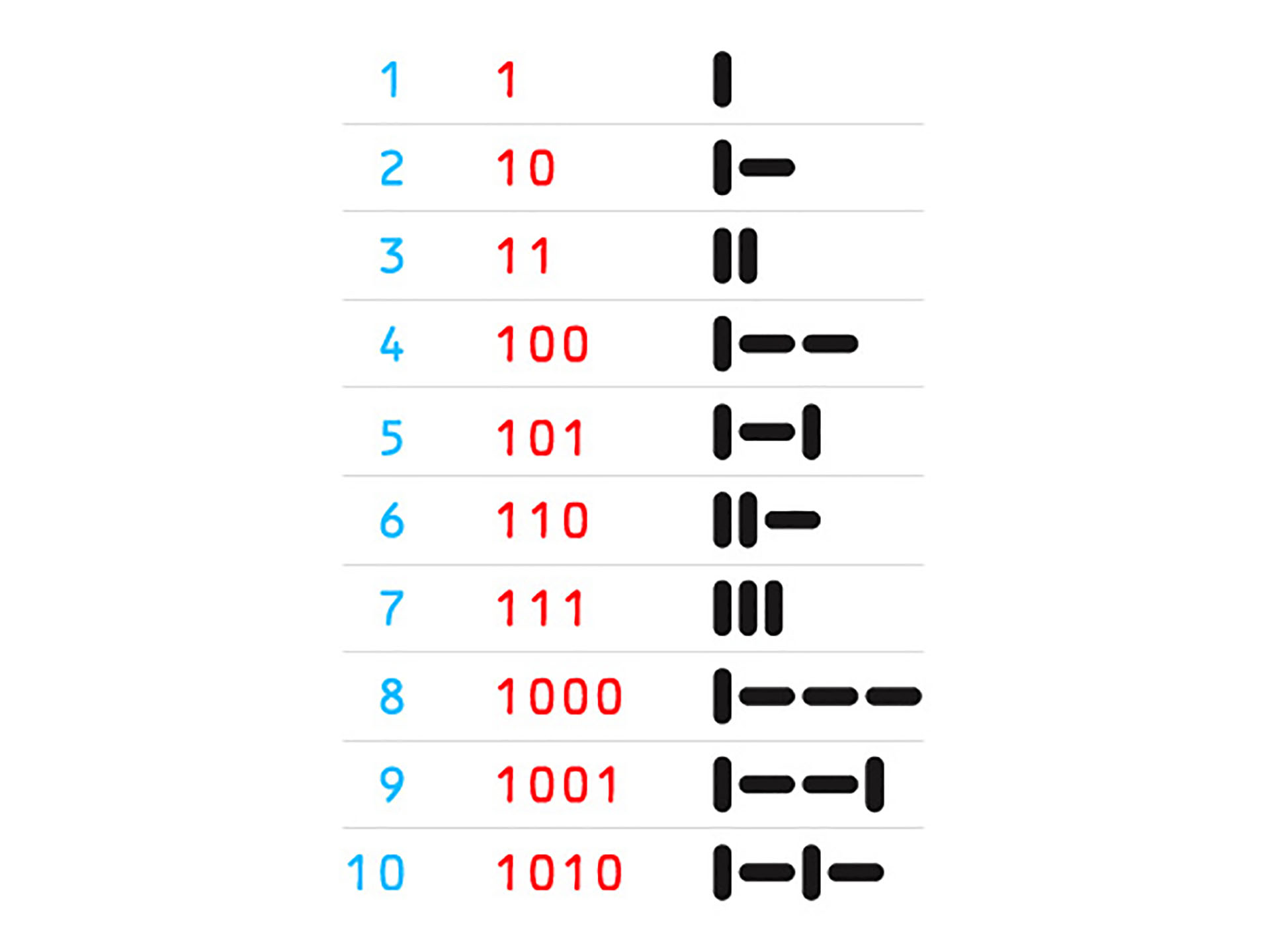

Each pulsar line is encoded in binary — not because binary is universal, but because Sagan and Drake made a deliberate judgment: any civilisation capable of intercepting a spacecraft would almost certainly have developed some form of binary logic to get there. It was a reasoned assumption about an audience they couldn’t meet, and it’s the kind of assumption designers make constantly. You never know your audience completely. You make your best informed inference and commit to it.

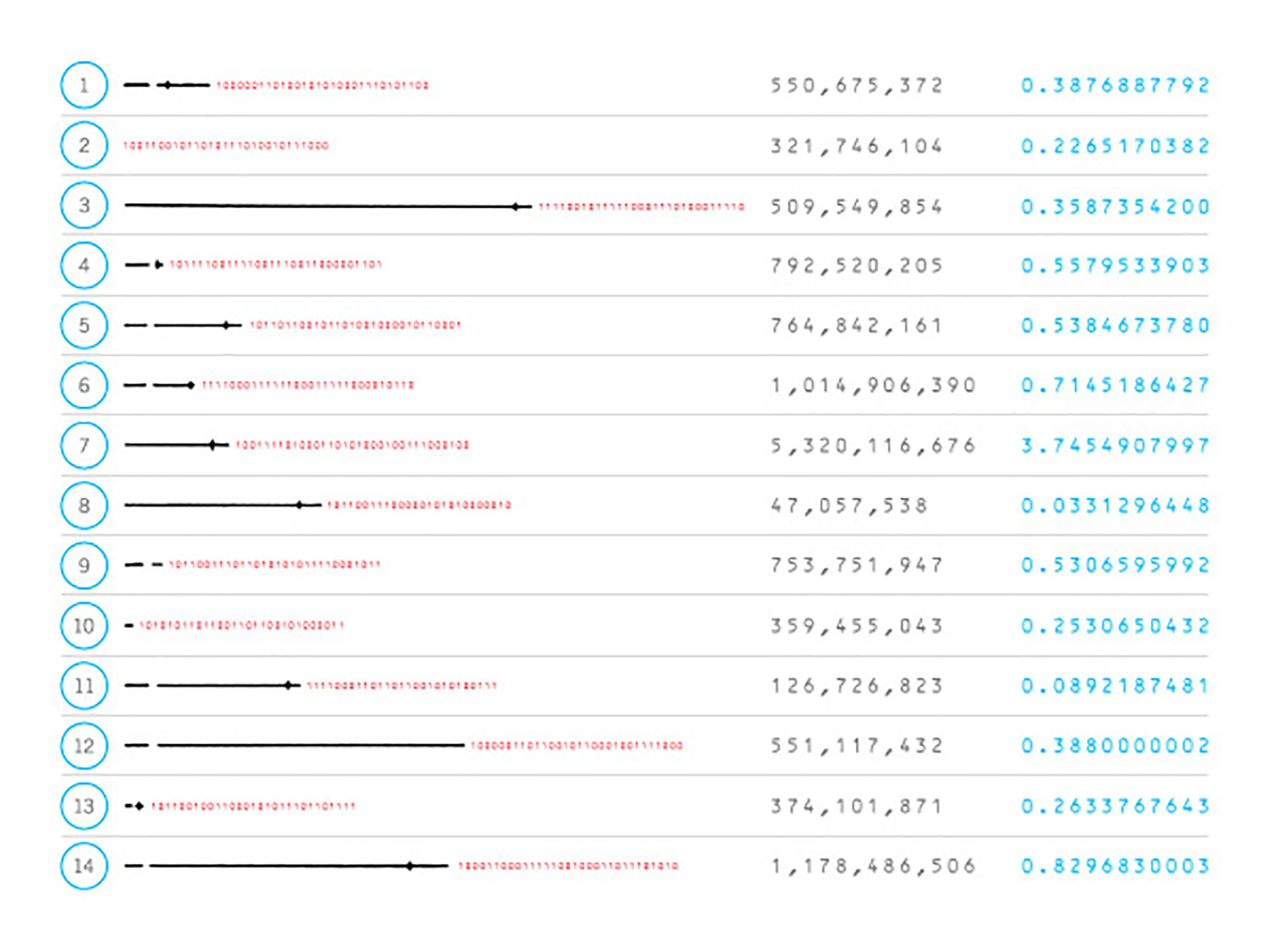

Each line encodes two values: the pulsar’s distance from our Solar System, and its precise rotational period — the fingerprint that makes it uniquely identifiable.
When all 14 are decoded, the result is an unambiguous address: a set of coordinates that any civilisation with radio astronomy could cross-reference to pinpoint our location.
Trust the diagram

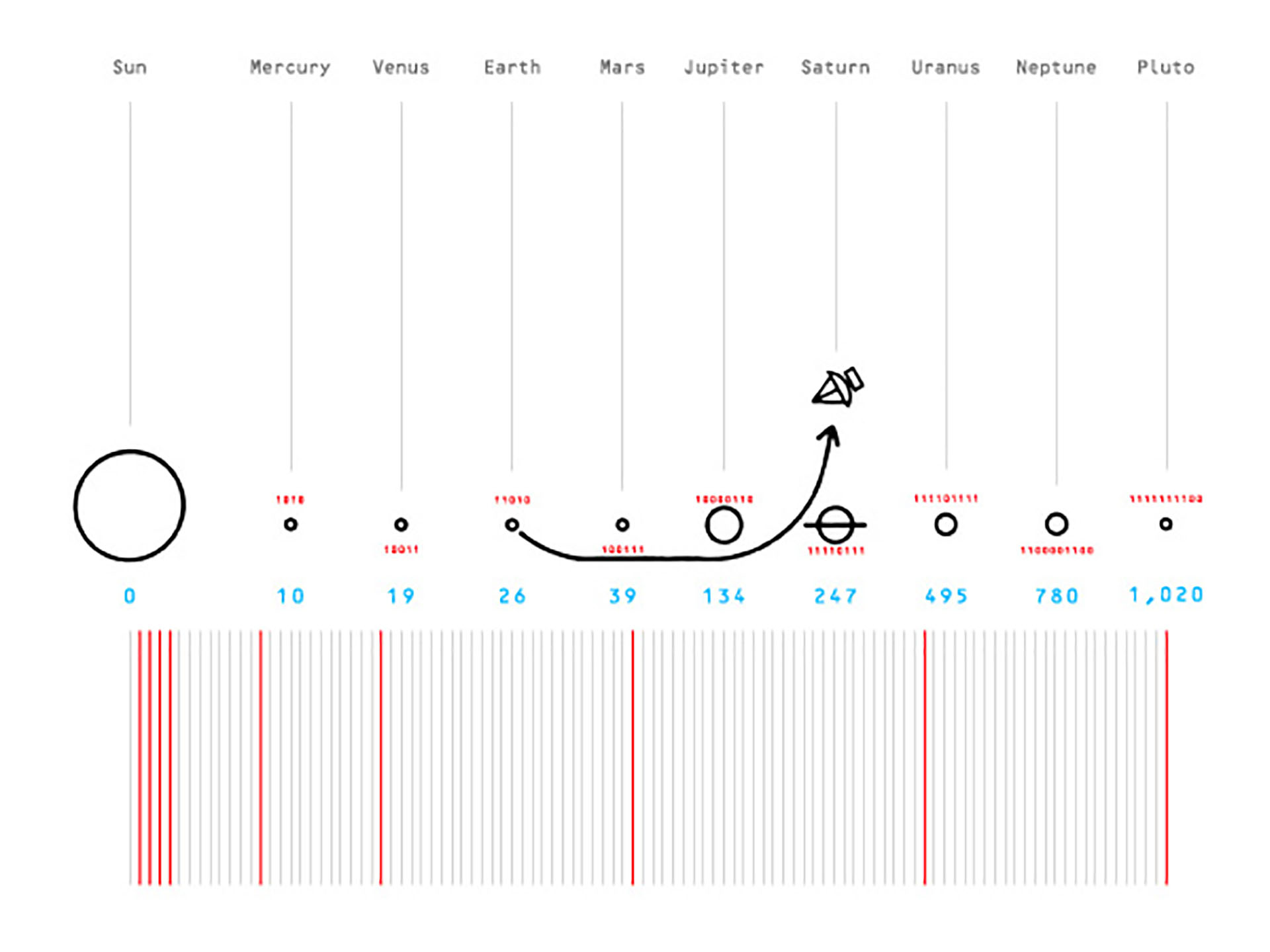

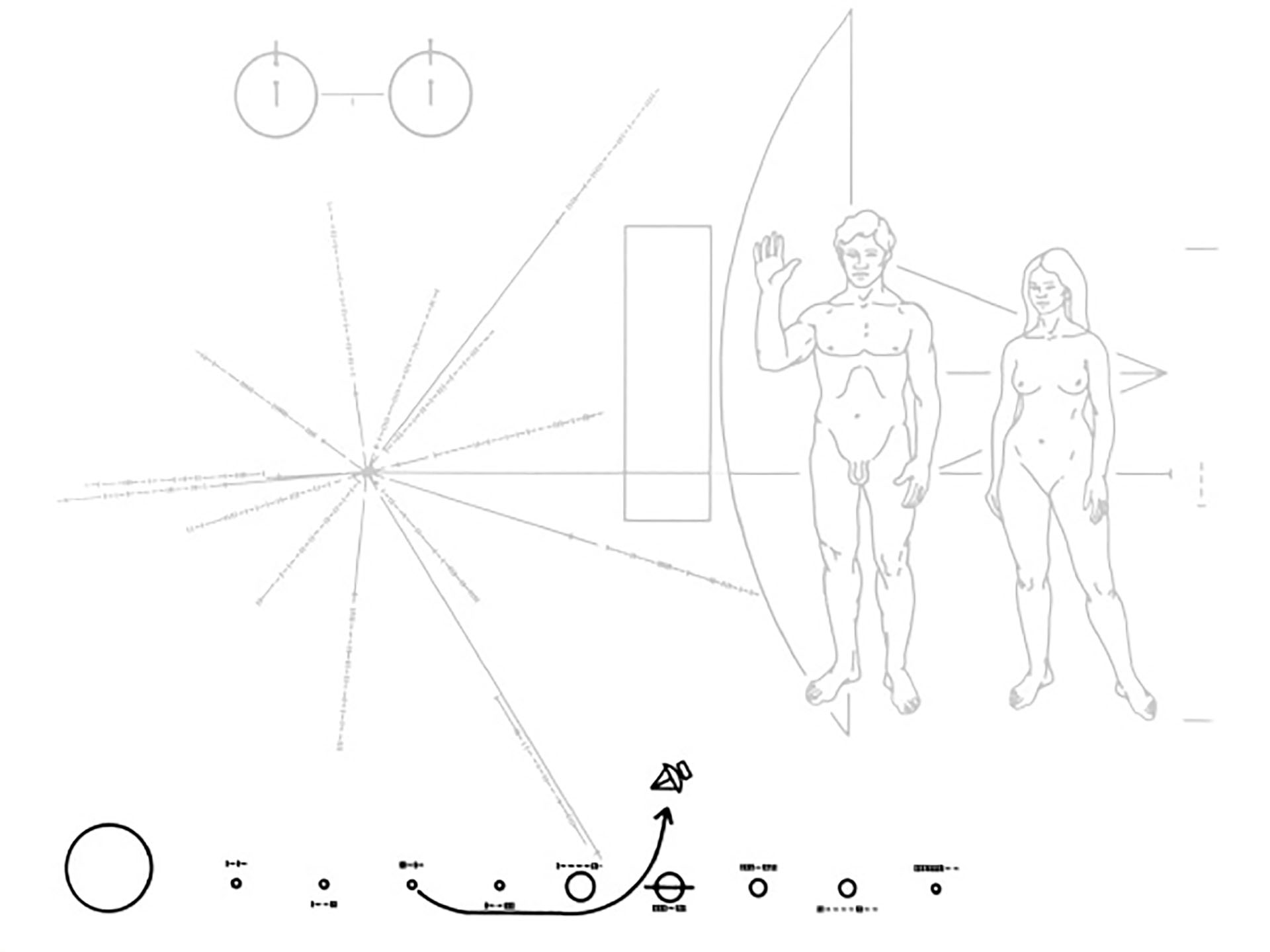

The Solar System diagram is the simplest section of the plaque and, in some ways, the most revealing. Rather than encoding complex astronomical data, Sagan and Drake drew a schematic — nine bodies at relative distances from the Sun, with Saturn’s distinctive ring included specifically to aid identification. An arrow shows the probe’s trajectory departing from the third planet.
It’s a pragmatic move. After the rigour of the hydrogen key and the pulsar map, this section trusts the reader to make a visual inference. The binary headers on each planet encode relative distances from the Sun, but the diagram works even without decoding them. The overall shape — the layout, the spacing, the ring — does most of the communicative work on its own.
The arrow is the one moment where the design falters. An arrow indicating direction is a convention, not a universal. It assumes the reader shares the same visual grammar. Sagan later acknowledged it as the plaque’s most significant assumption — a reminder that even the most rigorous information designers carry blind spots from their own culture.
The question behind the brief

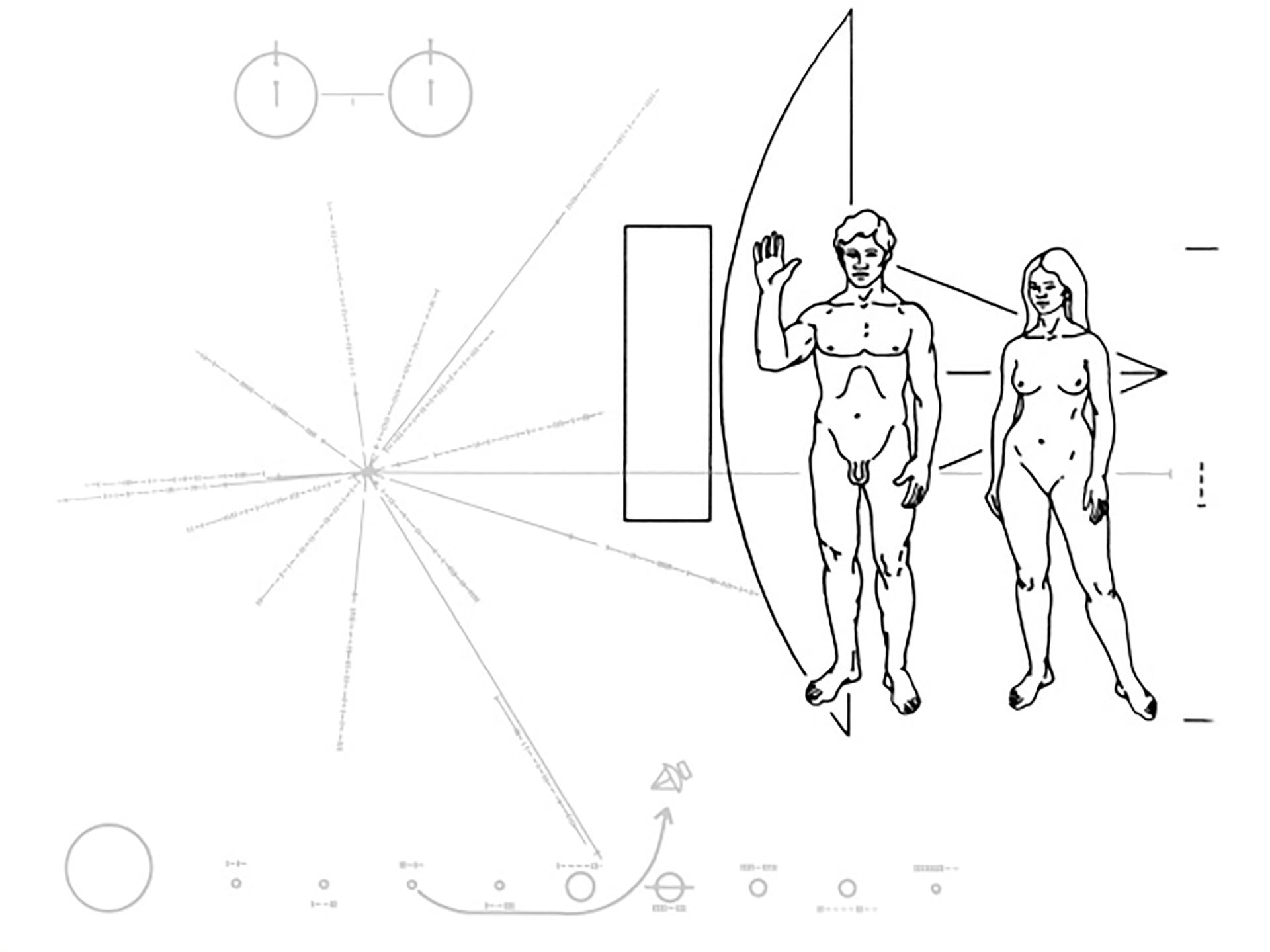

The final section shows a man and a woman against a silhouette of the probe — the probe included specifically to establish scale. The man’s raised hand was intended as a gesture of greeting, though Sagan noted afterwards that a raised hand is no more universal than a wave or a bow. The woman’s height is encoded in binary alongside the figure; multiplied by 21cm, it gives 168cm — the average human height in the 1970s, and the key to understanding the scale of everything else on the plaque.
It is the most human section of the design, and the most contingent. All the physics that precede it are verifiable from first principles. This section asks the reader to make an intuitive leap: that these figures are the senders.
Viewed as a whole, the Pioneer plaque is a masterclass in designing under radical constraint. No assumptions about language. No assumptions about culture. A time horizon measured in millions of years. A feedback loop of exactly zero. And a two-week deadline.
What Sagan and Drake built was a hierarchy of certainty — starting with what they could prove was universal, moving through reasoned assumptions about a capable audience, and ending with a human gesture that required an act of imagination to complete. It’s not a perfect design. But it’s a profoundly logical one. And the distance between those two things is where most of the interesting design problems live.
